Steve Higdons MPC (Wiring Diagrams)

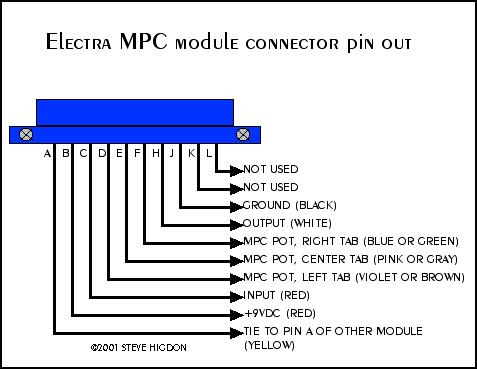

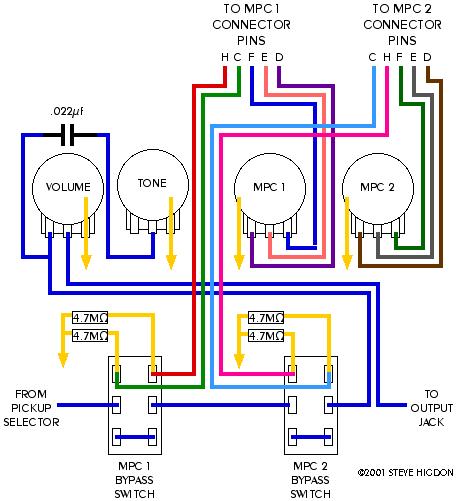

This wiring diagram is not exactly stock, but performs the same (or better) as the stock wiring. The main difference is the way the module bypass switches are wired. My diagram achieves "full bypass" that totally removes the module from the circuit when not activated. Both input to the module and output from the module are disconnected from the pickups when the switch is in the "off" position. The 4.7M ohm resistors help reduce clicks and pops when switching the effects on or off by draining any lingering DC voltage off to ground. The .022uf tone cap may be a different value on your guitar. This diagram places the modules after the pickup selector, but before the volume and tone controls. There are options if you want things in a different order. Email me if you have any questions. I'll try to have a stock diagram finished soon. |
